Creating GenAI Apps in Java with SD4J (Stable Diffusion for Java) and the ONNX Runtime — Part 1

Juarez Junior
5 min readNov 12, 2024

--

SD4J (Stable Diffusion forJava) by Oracle Labs

This blog post provides a quick guide on how to generate images with SD4J (Stable Diffusion for Java), a Stable Diffusion implementation.

Oracle Labs (Open-Source) has introduced the Stable Diffusion in Java (SD4J) project, a modified port of a Stable Diffusion C# implementation with support for negative text inputs. SD4J can be used via the GUI or programmatically in Java applications to generate images by reusing a Java class with a well-defined interface contract com.oracle.labs.mlrg.sd4j.SD4J.

SD4J runs on top of the ONNX Runtime, a cross-platform inference engine.

So without further ado, let’s get started!

Prerequisites

Image Generation — Steps

The steps below demonstrate how to use ONNX Runtime from Java and provide some tips and the best practices for ONNX Runtime to achieve good performance.

Install Python 3 and the Python dependencies

The scripts require a suitable Python 3 installation, along with the dependencies listed below:

pip install diffusers
pip install transformers
pip install onnxruntime
pip install optimum
pip install onnx
pip install torch
pip install accelerate
pip install onnxruntime_extensions

Clone the SD4J project

Create a root directory for your environment, then clone the SD4J project.

cd C:\models
git clone https://github.com/juarezjuniorgithub/sd4j.git

Install Git Large File Storage

LFS is an open-source Git extension for versioning large files.

git lfs install

Prepare the ONNX model checkpoint

Hugging Face’s website has many compatible models. We have tested the Stable Diffusion v1.5 checkpoint, which has pre-built ONNX models. You can download it via the git command below.

git clone https://huggingface.co/runwayml/stable-diffusion-v1-5 -b onnx

Setup the ONNX Runtime extensions

You will also need to check out and compile onnxruntime-extensions for your platform. The related repository is available at https://github.com/microsoft/onnxruntime-extensions

git clone https://github.com/microsoft/onnxruntime-extensions

Last, download the Python script convert_stable_diffusion_checkpoint_to_onnx.py from Hugging Face, and save it to a scripts directory. The directory structure on Windows is below for your reference.

SD4J and dependencies

Preparation with Hugging Face

Install the Hugging Face CLI.

pip install -U "huggingface_hub[cli]"
huggingface-cli --help

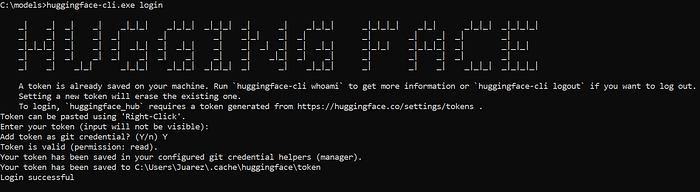

Authenticate against the Hugging Face platform. Note that you have to provide the user access token per the pre-requisites section above.

huggingface-cli.exe login
huggingface-cli.exe login

Compile the ONNX Runtime extensions for your target platform (Windows)

The ONNX Runtime extension is a library that extends the capabilities of the ONNX models and the interference with the ONNX Runtime.

cd C:\models\onnxruntime-extensions
build.bat

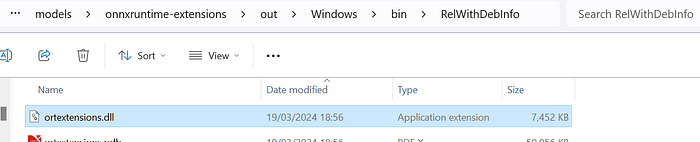

It will generate the required library (ortextensions.dll for Windows) as shown below. The DLL will be located at C:\models\onnxruntime-extensions\out\Windows\bin\RelWithDebInfo\ortextensions.dll

ortextensions.dll

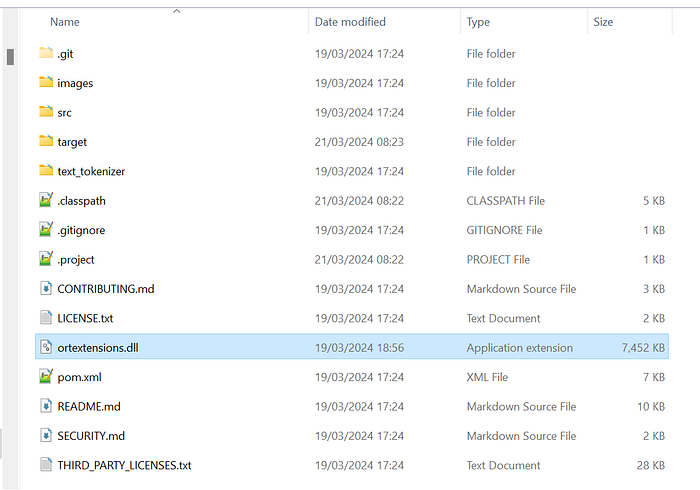

Copy the DLL file to the root of your SD4J project.

SD4J with ortextensions.dll

Compile the Java project with Maven

cd C:\models\sd4j
mvn clean package

Run the SD4J GUI

cd C:\models\sd4j
mvn clean package exec:exec -DmodelPath=../stable-diffusion-v1-5/

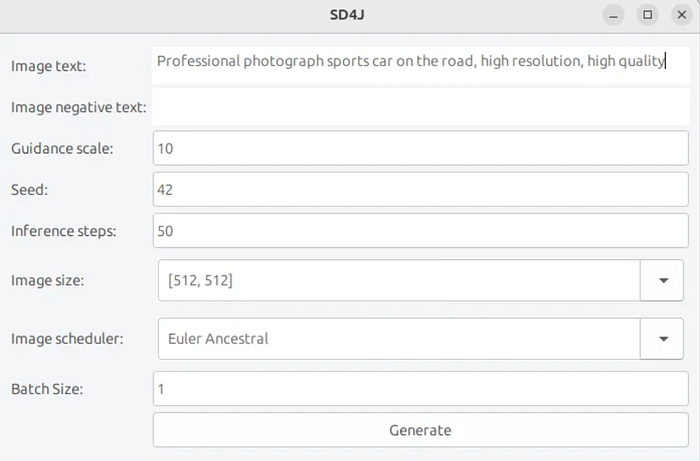

SD4J GUI

Unless stated otherwise, the images in this news story were created with guidance scale 10, seed 42, inference steps 50, and image scheduler Euler Ancestral.

You can specify the parameters of the image you’d like to generate,
and each image creates its own window where it can save the image as a PNG file. Saved PNG files contain a metadata field with the generation parameters.

The seed is a random number used to generate noise. When using the same seed, prompt, and other parameters, the generated images stay the same.

Stable diffusion starts with an image of random noise. With each inference step, the noise is reduced and steered towards the prompt. Higher is not always better, as it might introduce unwanted details. The Hugging Face website generally recommends 50 inference steps.

Create an image

Now, you can use the GUI to create an image of a sports car on the road, with the following textual description.

Professional photograph sports car on the road, high resolution, high quality

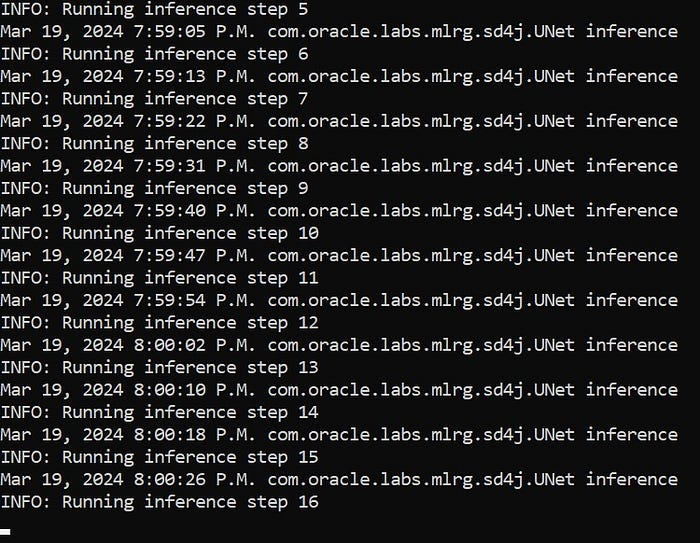

The inference steps will be logged as below.

Inference steps

As soon as the process is completed, your image will be available. An example image is below.

SD4J supports negative text inputs for exclusion, in this case, the red color. Most sports cars are red, so to create images of sports cars that aren’t red, the image's negative text may be used to specify what the image shouldn’t contain.

Image negative text: red

Wrap-up

That’s it! You learned how to create images with Java and the SD4J Library in Part 1 of this series. It introduced the tools, how to install them, and presented the SD4J Library in action with an existing code sample.

Part 2 will show you how to combine SD4J with the Oracle Database 23ai, and we’ll also explore the possibilities with GraalVM to create a fast yet solid image generator, so stay tuned!
